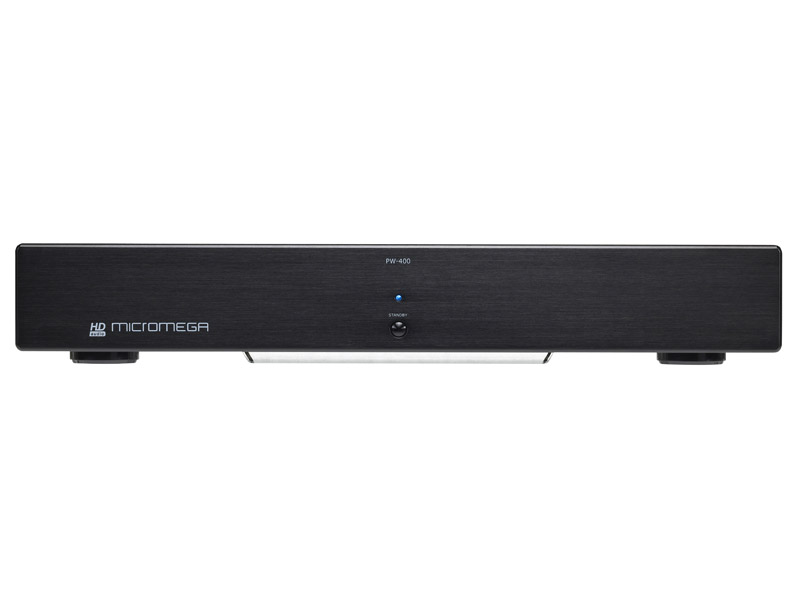

Micromega PW-400 Etapa

PW-400 is the most powerful of the two stereo power amplifiers which in a small size and associated pw400abwith PA-20 are able to fulfill completely the demand of modern speakers and offer an effortless reproduction respectul of all details of the muscial message.

The class D technology has been pushed to the limits by using specific parts selected for their ability to reproduce each smallest detail of the muscial message without any degradation.

Special voltage regulators for all low level stages are serious contributors to the transparency of the musical reproduction of PW-400.

Disponible en Negro y Plata

Power per channel / 4Ω : 400W
THD at Pmax / 2 / 2: < 0.05%
Output noise : 30µV
Input impedance : 100kΩ
Output impedance (1kHz) : < 20mΩ
Frequency response (-3dB) : 10Hz-50kHz
Voltage gain : 26dB
Efficiency at Pmax :   92%
Idle losses : 8W
STBY current :   10mA
Current limit :   20A
Power consumptione :   900W
Dimensions : (W x D x H mm) :   430 x 300 x 70
Weight :   12.0kg

Disponible en Negro y Plata

Precio: €2,240,00

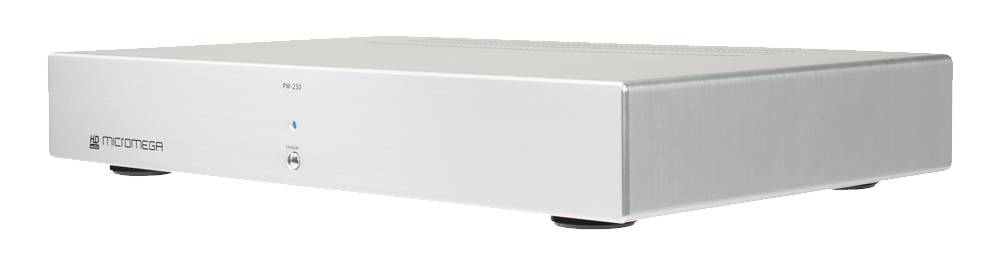

Micromega PW-250 Etapa

PW-250 is the first of two stereo power amplifiers which in a small size and associated with PA-20 are PW-250able to fulfull completely the demand of modern speakers and offer and effortless reproduction respectful of all details of the musical message.

Thanks to its class D amplification modules, PW-250 is dynamic and transparent together with a real sense of efficiency.

Disponible en Negro y Plata

Disponible en Negro y Plata

Power per channel / 4Ω : 250W
THD at Pmax / 2: < 0.05%
Output noise : 30µV
Input impedance : 100kΩ
Output impedance (1kHz) : < 20mΩ
Frequency response (-3dB) : 10Hz-50kHz
Voltage gain : 26dB
Efficiency at Pmax :   92%
Idle losses : 8W
STBY current :   10mA
Current limit :   20A
Power consumption :   600W
Dimensions : (W x D x H mm) :   430 x 300 x 70
Weight :   12.0kg

Precio: €1,645,00

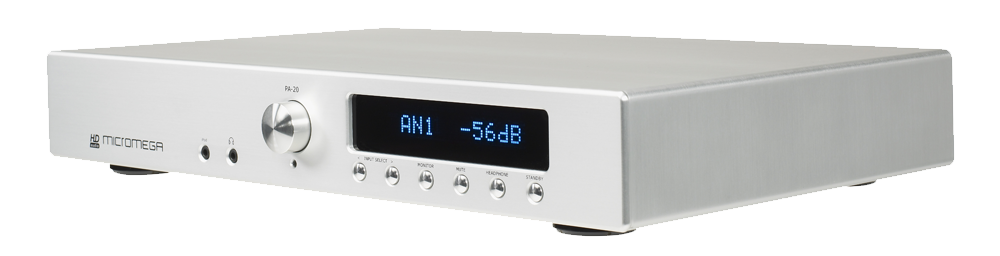

Micromega PA-20 Previo

With PA-20, the new Micromega preamplifier together with PW-250 and PW-400 its power partners, PA-20you will be able to reach levels of reproduction unobtainable with an integrated solution.

PA-20 share with IA-60, IA-100 and IA-180, the three integrated amplifiers of this range, some functionalities which fall under a serach for coherence of the products making their ergonomics intuitive and supporting the change from one model to another without the necessity to relearn how the new one functions come.

Thanks to the use of  MICROMEGA ACTS® power supply which allows PA-20 to reproduce the most complex musical signals in a totally effortless manner, with a great sense of dynamic.

Disponible en Plata y Negro

Line level inputs : 5
Line level input sensitivity : 280mV
Line level input impedance : 47kΩ
MM phono input : 1
Phono input sensitivity : 5mV
Phono input impedance : 47kΩ
Processor input : 1
Sub Input :   1
2.1 Mode : Oui
Tape out output impedance :   600Ω
Headphone output power : 2W
Minimum headphone impedance: 32Ω
Line Output impedance (1kHz) : 600Ω
Bandwidth : 10Hz-100kHz
THD + noise (20Hz-20kHz) : < 0.02%
Maximum power consumption : 50W
Dimensions : (W x D x H mm) :   430 x 300 x 70
Weight :   6.0kg

Disponible en Plata y Negro

Precio: €1,335,00

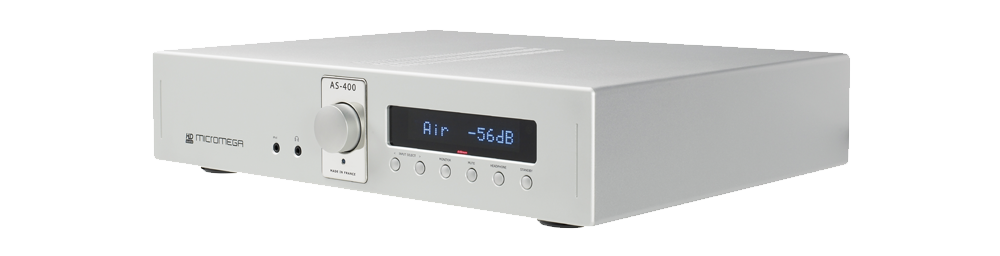

Micromega IA-400 Amplificador Integrado

Micromega, with over 20 years of experience in amplifier development, is proud to announce IA-400, a AS-400very powerful integrated amplifier capable of driving almost all types of speakers, even the most demanding ones.

The preamplifier is a very low noise state of the art gain section with extremely low noise power supplies and sophisticated layout to avoid any ground loop. A specific rcore transformer is dedicated to all low levels signals, avoiding cross coupling between the two sections and preventing any disturbance from the mains line to enter the product. Ultra low noise regulators are feeding the preamplifier section to allow very accurate low level resolution.

Input switching is done by relays and the input impedance of 100kΩ guarantees that the preamplifier section will not load the different sources connected to it. Volume control is achieved by a digitally controlled resistor ladder with extremely low distortion. The power amplifier section has its own 1kVA toroïdal “quiet design” power transformer. The modules are class D modules with no less that 400W/4Ω output power capacity.

In addition, IA-400 provides a great number of features. The case work with its sandblasting finish, available in two colors silver or black, is superb and the build quality is to the highest standards.

Disponible en Plata y Negro

Output power (both channels/4Ω) :   400W
Frequency response (+0/-3dB) :   10Hz – 50kHz
Power bandwidth : 20Hz – 35kHz
Output impendance : < 150mΩ/f < 20kHz
Output noise (20Hz-20kHz) : < 30μV
THD (20Hz-20kHz 1/2 power) : < 0.01%
Signal to noise (A weighted) : > 96dB
IR remonte control :   Yes
IR remonte protocol/frequency :   RC5/36kHz
RS232 remote : Yes
Mains voltage : 100V-120V-220V-240V
Mains frequency : 50Hz-60Hz
Power consumption (max) : 1000W
Dimensions (W x H x D) : 430 x 95 x 365
Weight : 12Kgs

Disponible en Plata y Negro

Precio: €2,570,00

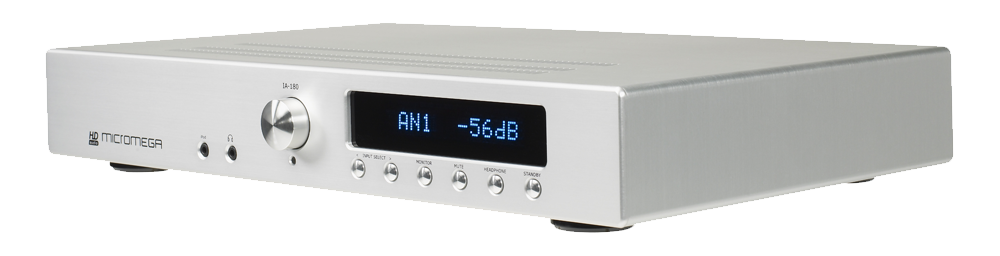

Micromega IA-180 Amplificador Integrado

IA-180 is the last of a line of three integrated amplifiers.IA-180

It shares with IA-60 and IA-100 some functionnalites which fall under a search of coherence of the products making their ergonomics intuitive and supporting the change from one model to another without the necessity to relearn how the new one functions come.

Thanks to its many assets and in particular its very elaborate class D power modules, makes penetrate the listener in another world, where one does not speak anymore of sound reproduction but of musical reproduction. Each emotion is reproduced with a unique degree of openness and transparency, where efforless music reproduction takes all this meaning..

Disponible en Plata y Negro

Headphone output power : 2W
Minimum headphone impedance : 32Ω
Rated power (4Ω) : 2x 180W
Output impedance (1kHz) : < 20mΩ
Power bandwidth : 10Hz-100kHz
THD + noise (20Hz-20kHz) : < 0.02%
Maximum power consumption : 400W
Dimensions : (W x D x H mm) :   430 x 290 x 69
Weight :   7.0kg

Disponible en Plata y Negro

Precio: €1,750,00
